Forms

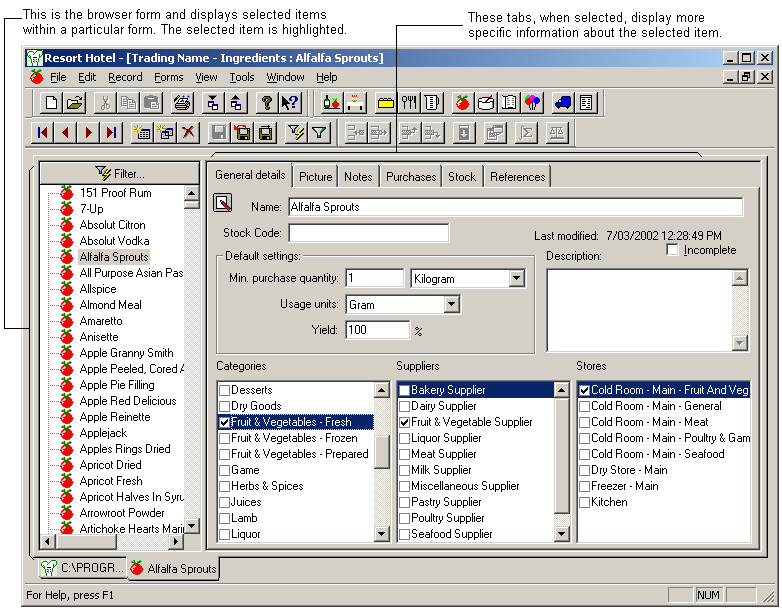

All information entered in Resort Hotel is done through a number of on-screen forms.  These are all customized to suit the type of information you are working on.  For example, if you wish to edit ingredients you would open the Ingredient form.  Each of the forms in Resort Hotel is broken into two (2) windows or 'panes'.  The left hand pane is known as the browser pane and lists the names of the items in your database.  The right hand pane shows the actual details of one of those items.  For example, the Ingredient form will show a list of ingredients down the left-hand browser pane and the details of a selected ingredient in the right hand pane.



To view or modify ingredient details, select an ingredient from the browser on the left and its details will be displayed on the right-hand side.  You can then modify the ingredient's details in the right-hand pane. The right-hand pane, in most cases, has a number of tabbed sub-forms (or pages) across the top of the form.  Clicking a tabbed sub-form (or page) lets you view or edit different details of the selected item.  For example,  the ingredient form has a general details page which lets you view or edit information such as the ingredient name, description, purchase unit etc. The Cost/Price page allows you to view or edit the cost and price information of the current ingredient and so on for the remaining pages in that form.



See the following image.



forms

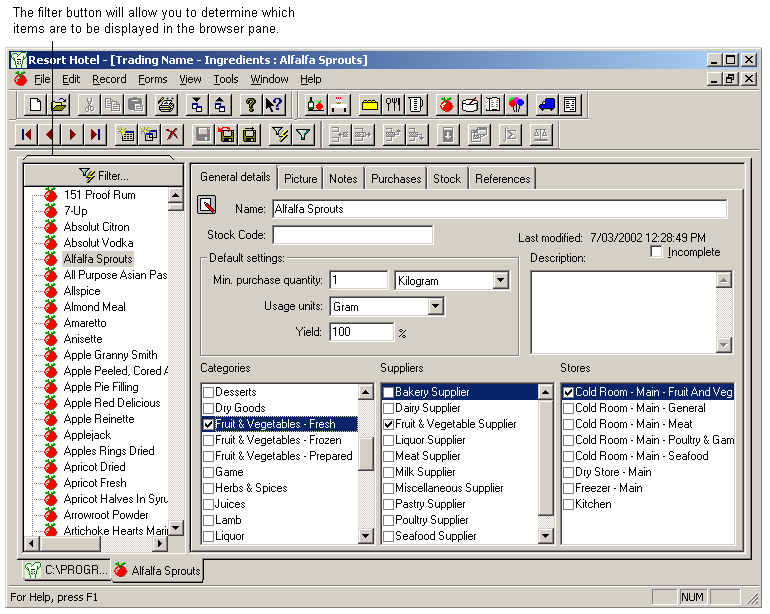

Within some forms, it is possible to select the information you want to display.  For example if you are in the ingredients form, instead of viewing all ingredients, you may only wish to display the ingredients available from a specific supplier.  To do this, you can use the filter button to select the type of information displayed.  The filter button is displayed at the top of the browser pane on the left-hand side of the screen.



See the following image.



formsfilterbutton

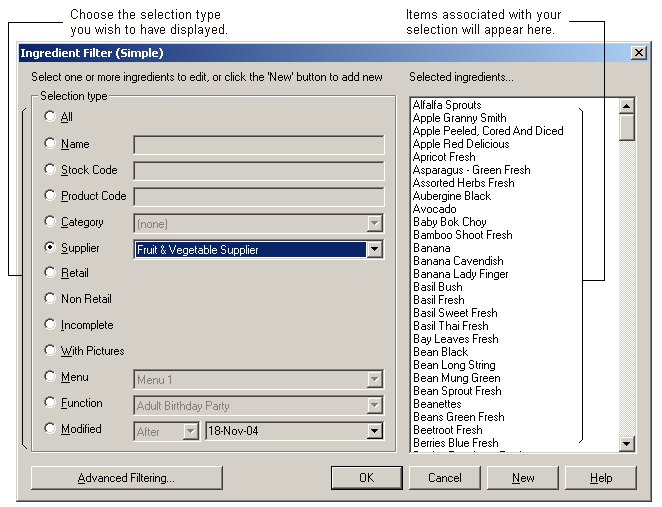

Clicking on the icon_filterbar button,   will display a dialog box in which you can choose the data to be displayed.



See the following image.

formfilterdialog

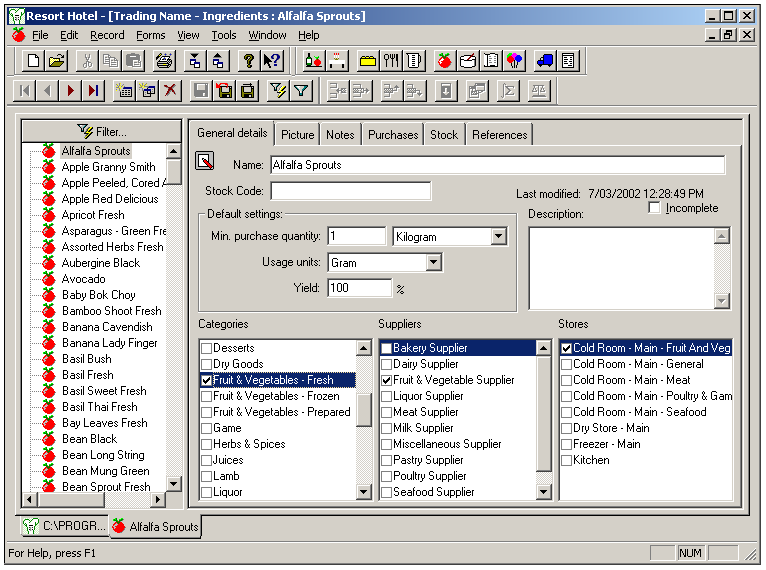

Once you have decided on the selection type, click the "OK" button and the selected data type will now be displayed in the form's browser pane.



See the following image.



formsselectiontype



Detailed topics for each form and its associated tabbed sub-forms (or pages) can be found by viewing the relevant topic below.



icon_formstore        Store Form



icon_formoutlet        Outlet Form



icon_formcategory        Categories Form



icon_formcourse        Courses Form



icon_formunit        Units Form



icon_formingredient        Ingredients Form



icon_formingredcosts        Ingredient Costs Form



icon_formrecipe        Recipes Form



icon_formmenu        Menus Form



icon_formfunction        Function Form



icon_formsupplier        Suppliers Form



icon_forminvoice        Invoice Form
